TOUCHSWITCH ALIGNMENT BELT ALIGNMENT SENSOR 24V

TS2V4C

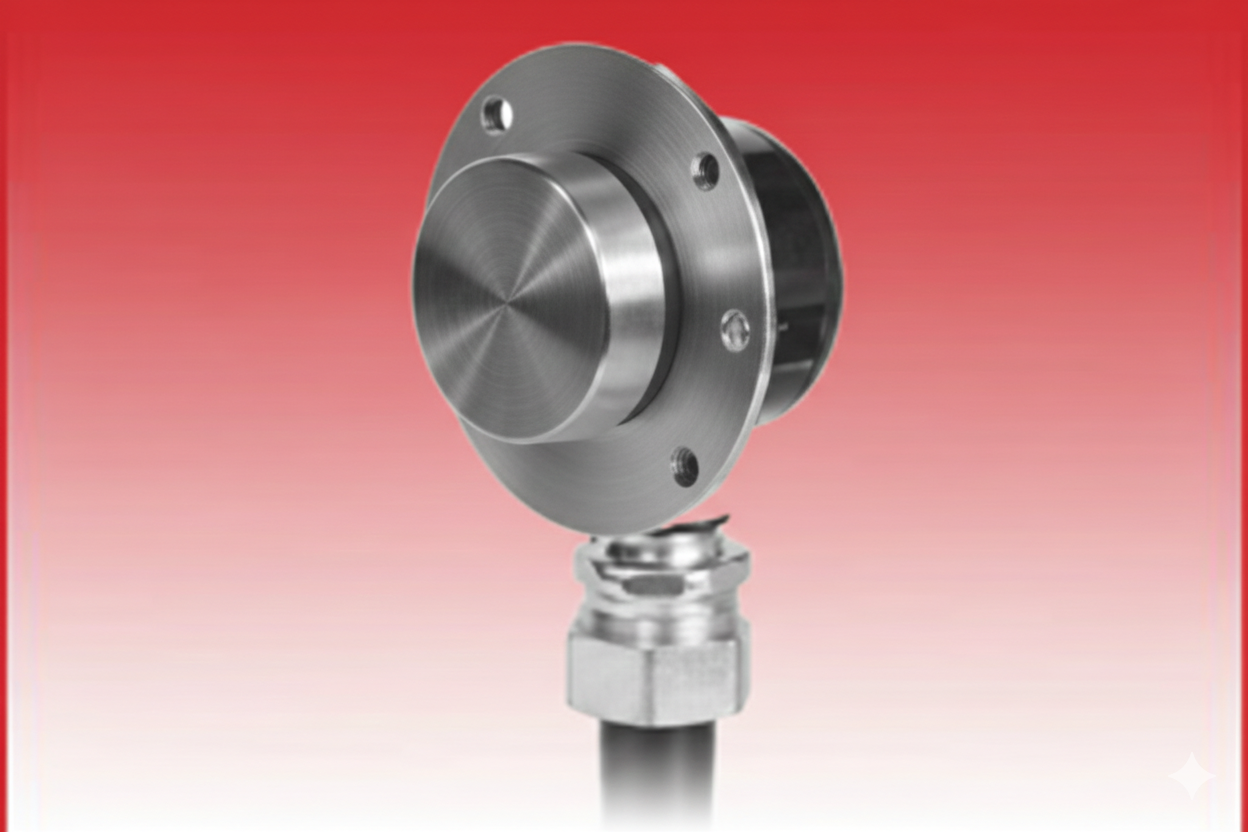

THE TOUCHSWITCH™ IS AN ELECTRONIC LIMIT SWITCH. WHEN A BELT MISALIGNS OR A PULLEY MOVES OVER AND CONTACTS THE SENSOR, THE BUILT IN SOLID-STATE ELECTRONIC CIRCUITRY DETECTS THE LATERAL FORCE OF THE BELT OR PULLEY AND ACTIVATES A VOLTAGE FREE RELAY CONTACT. THIS RELAY CONTACT IS USED TO IMMEDIATELY ALARM AND SHUTDOWN THE MACHINE.

THE FACE OF THE SENSOR IS MADE FROM HARDENED STAINLESS STEEL, SO THAT THERE IS VIRTUALLY NO WEAR WHEN A BELT CONTACTS IT. THE SENSOR IS NOT AFFECTED BY DUST OR MATERIAL BUILD UP AND WILL STILL WORK WHEN COMPLETELY COVERED BY MATERIAL. SENSORS ARE NORMALLY INSTALLED IN PAIRS ON OPPOSITE SIDES OF THE MACHINE. USUALLY A PAIR OF SENSORS AT EACH PULLEY IS USED, BUT ADDITIONAL PAIRS CAN BE INSTALLED AS REQUIRED. AN EXTERNAL TEST KNOB ALLOWS FOR QUICK AND SIMPLE SENSOR / SYSTEM TESTING.

THE SENSORS CAN BE CONNECTED DIRECTLY TO A PLC INPUT, OR FOR GREATER SAFETY, TO A CENTRAL INDEPENDENT MONITORING SYSTEM, SUCH AS THE T500 HOTBUS OR WATCHDOG SUPER ELITE.

FEATURES:

• FORCE ACTIVATED BELT AND PULLEY MISALIGNMENT SENSOR
• INSTANTANEOUS MISALIGNMENT INDICATION
• HARDENED STAINLESS STEEL CONTACT FACE
• EXTERNAL TEST FEATURE
• OUTPUT LED INDICATION
• NOT A RUB BLOCK

DATASHEET

https://www.go4b.com/usa/datasheets/touchswitch-belt-alignment-sensor.pdf
